Technical Specs Summary

Official Hardware Parameters

Parameter Value
System Requirements No External PC Required (Fully Standalone)
Body Type 3 or 4 legs both 3 DOF
Nominal Power 400W or 750W each leg
Stroke Distance 100 - 150mm + customizable
Maximum Travel Speed 80 cm/s (Capped at 35 cm/s)
Maximum G-Force >1.0G (Safety Cap: 0.35G)
Active Safety Systems Anti-Hammering/Violent Tremor Measure & Emergency Stop/Freeze Circuit
Power & Standby Management Auto-Sleep (Power Saving) & Smart Park / De-Park Modes
System Health & Diagnostics Input/Output Hz Monitoring, Warning, Error & Fault Logging
Network Management Automated BLE & WiFi Management
Software Ecosystem Video/IMU/Telemetry/Command Signal over GSM
(Proprietary Software)
sp_hardware Fanatec, Simucube, Moza / RC Car / PS5 / Xbox

Maximum G-Force

>1.0G Capped at 0.35G

Our mechanical infrastructure is capable of producing >1.0G. It is soft-capped at 0.35G to ensure home safety, extreme precision, and standard compliance.

Maximum Travel Speed

80cm/s Capped at 35cm/s

Our high-torque actuators can reach 80cm/sec. Calibrated to an optimal 35cm/sec in racing sims to maintain the smoothest and most realistic driving feel.

Turnkey Standalone Solution

The price includes a complete turnkey solution consisting of motors, base chassis, drivers, and our custom-developed control unit. You ABSOLUTELY DO NOT need an external PC, messy USB connections, or any additional middleman device to run the system. This is a 100% standalone ecosystem.

Just Plug into Power and Play

Broad Platform Support

Because our software provides a broader solution, you can use the system seamlessly with PC, simHub, Xbox, and PS5.

Advanced Web Interface

Supports an integrated web interface for quick adjustments, system monitoring, and IMU/Video streaming from mobile devices.

RC Car Control

Thanks to its flexible infrastructure, it's even suitable for real-time RC car control with motionRig support!

Fully Compatible Ecosystem

SimHub Support for All Games
F1 202X
Assetto Corsa
Assetto Corsa Competizione
Dirt 2.0
Euro Truck 2
Gran Turismo 7
Forza 5
Live for Speed
simHub
F1 202X
Assetto Corsa
Assetto Corsa Competizione
Dirt 2.0
Euro Truck 2
Gran Turismo 7
Forza 5
Live for Speed

System In Action

Review the real-time response and fluidity of our MotionRig platform.

0.24 Gforce
0.35 Gforce

Our Philosophy

Just Focus On Driving

A "Plug and Play" experience that eliminates complex settings. The system is designed to run without user intervention.

Zero Hassle

No setup hassle, instant race-ready architecture.

Auto Calibration

Smart motor technology that self-tests and resets on every boot.

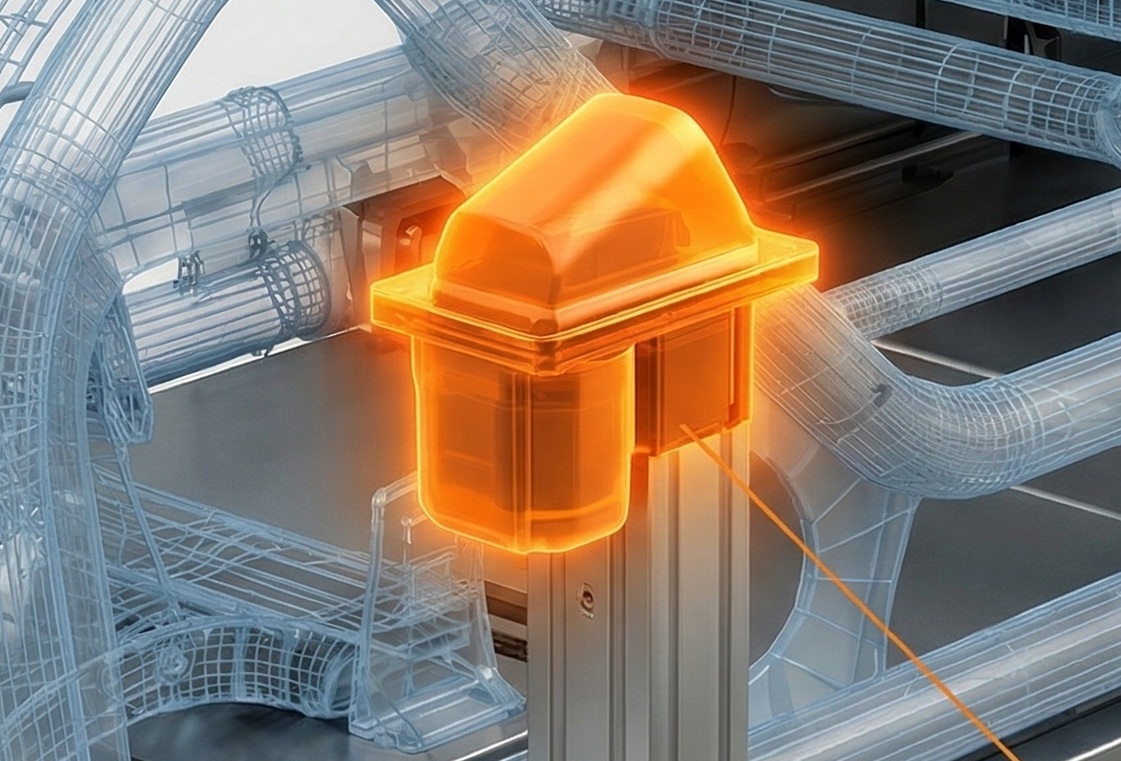

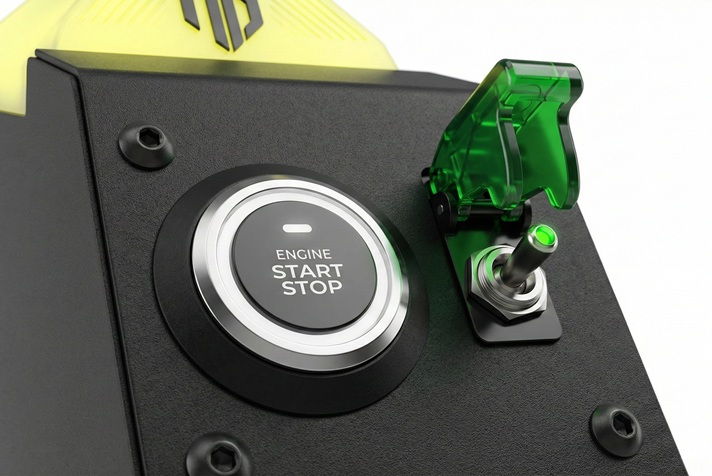

Engine Start Stop Motor Detail

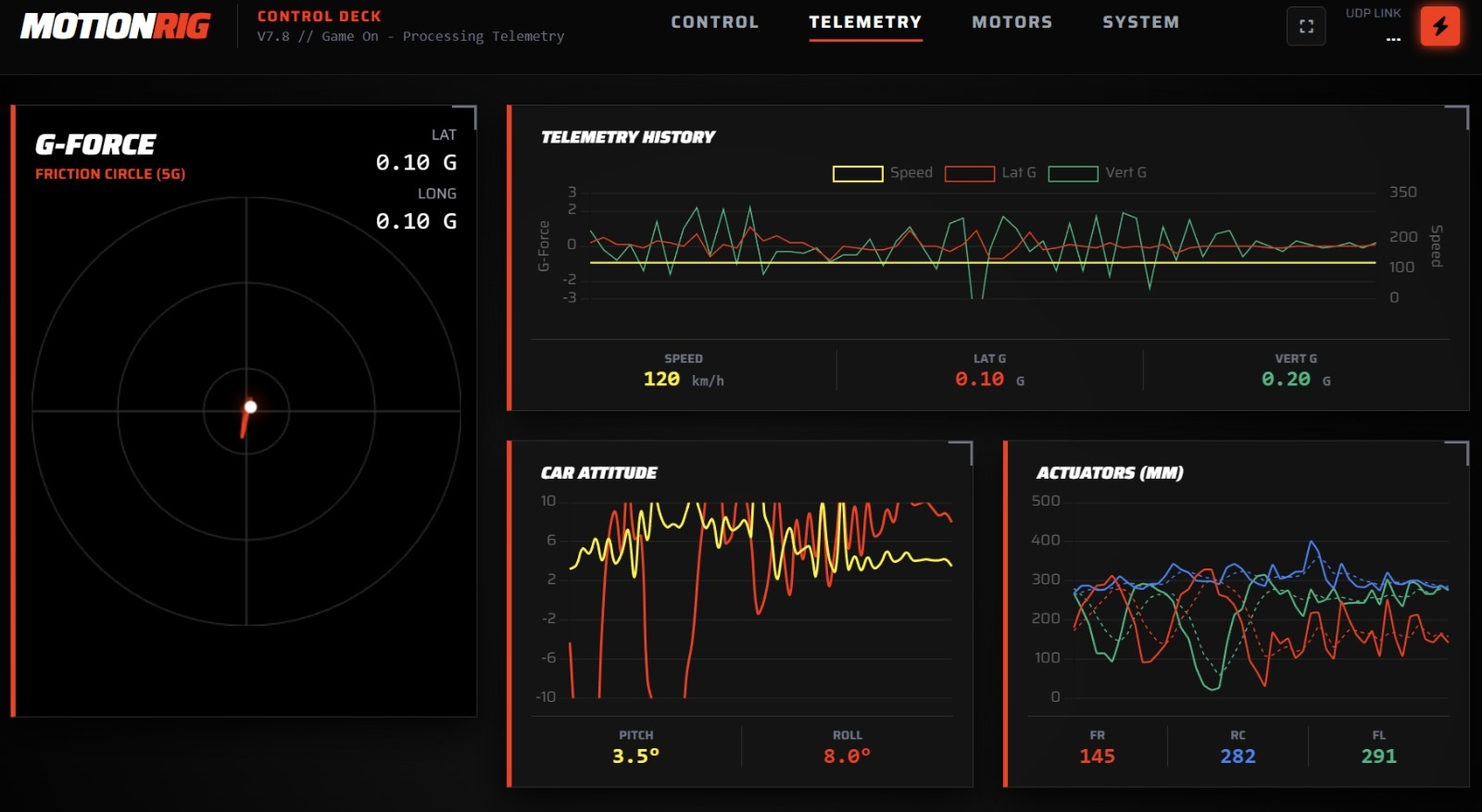

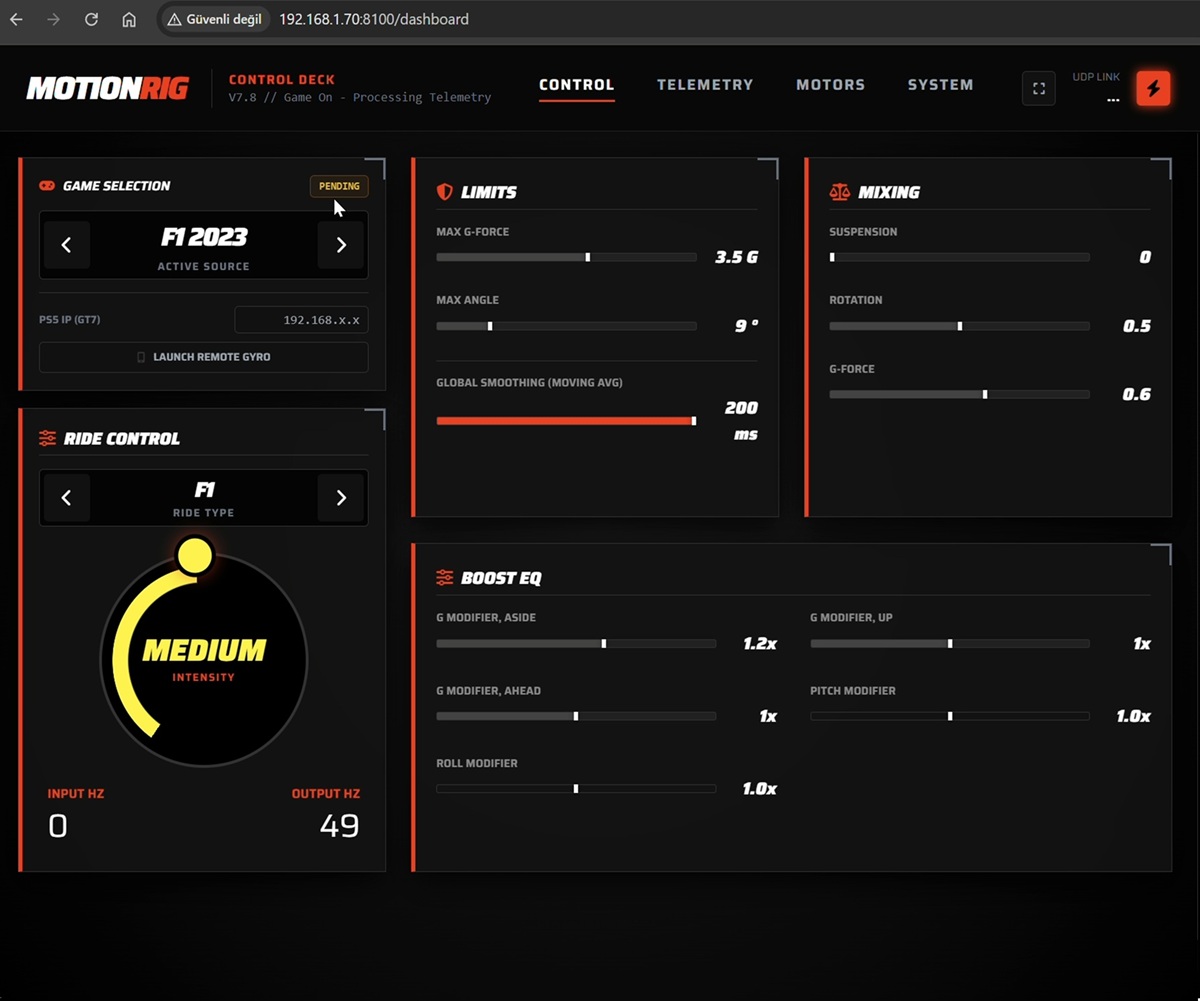

Telemetry Data
Telemetry

HOMS Architecture

Lossless Telemetry

  • Direct Memory Access (DMA)

    Game data is read with 17-bit resolution using 'ctypes' and custom parsers, without rounding errors.

  • Game-Based Optimization

    Custom-written codes for F1 202X, GT7, Assetto Corsa, and Forza perfectly reflect the physics engine's intent.

  • Raw Data (Salsa20)

    Offers the purest driving feel by decrypting encrypted data streams (Salsa20) instead of standard packets.

Dynamic Feel

Fluid Motion Technology

Uninterrupted simulation with a 'No-Jitter' guarantee. Advanced "LERP" algorithms keep motion smooth even with network latency.

60Hz+ Output

Over 60 position updates per second, even if the game stutters.

Smart Memory

Analyzes the past 20 motion frames to prevent mechanical vibrations.

Aero Sway

Aerodynamic lift (floating) sensation at speeds over 100 km/h.

5-Axis Motion

A flawless blend of Pitch, Roll, and Heave motions.

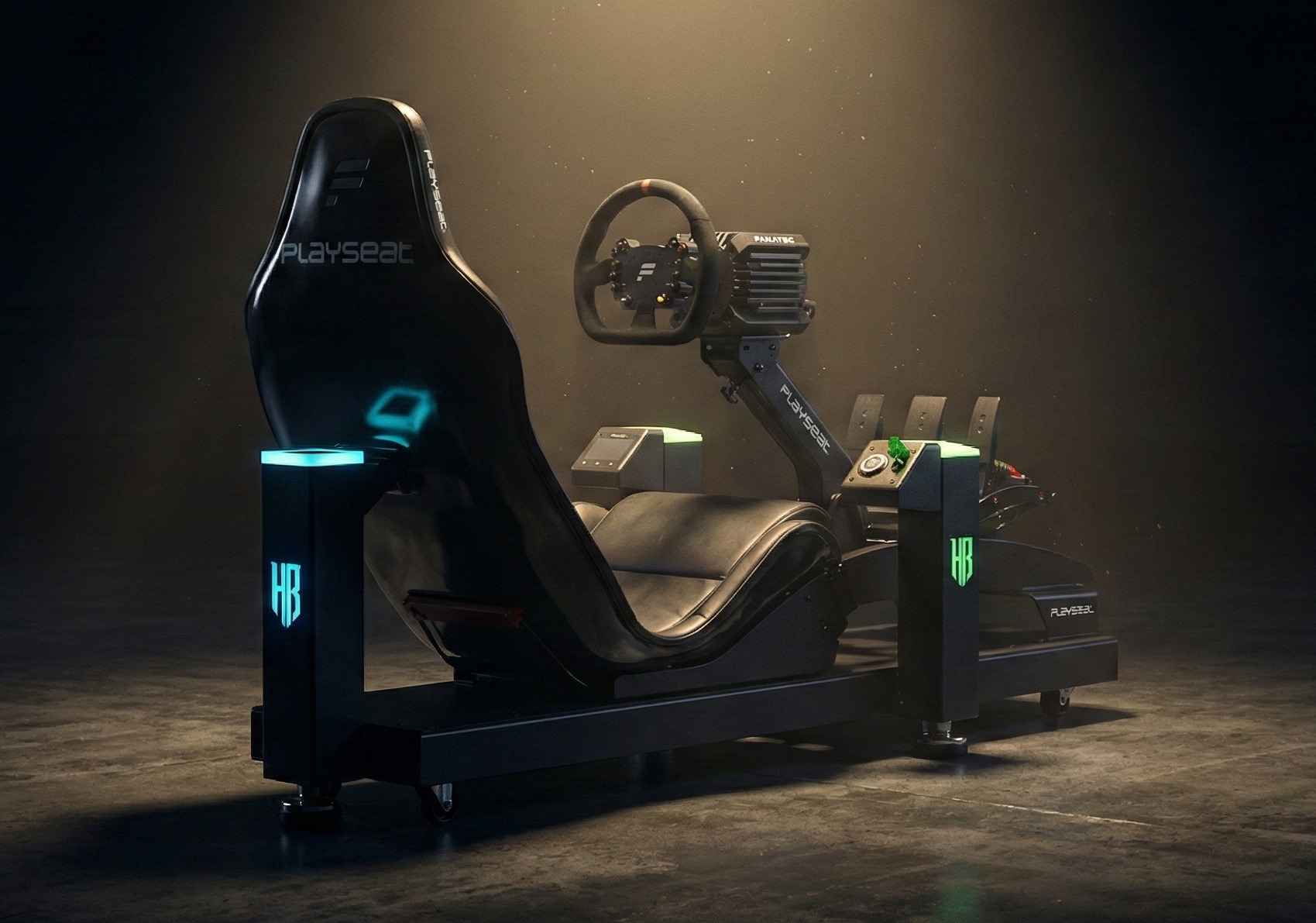

Fluid Motion

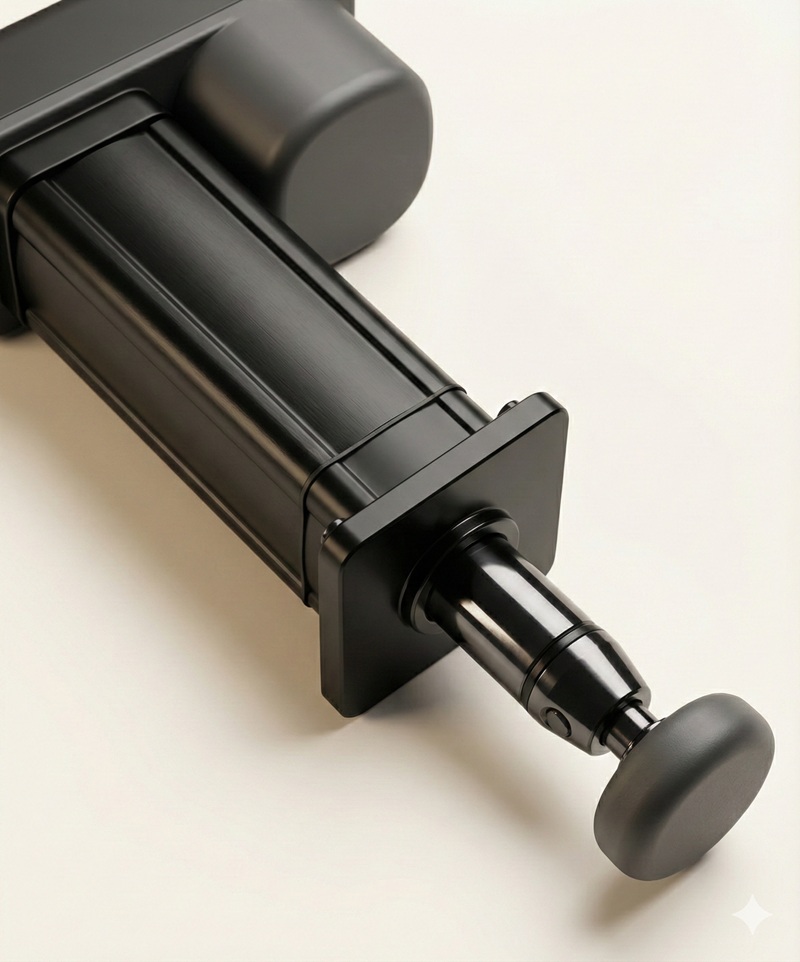

Actuator Detail

Infinite Control

Connectivity & Applications

Ignite BLE

No Coding, No Cables: Instant setup in seconds via Bluetooth using your phone. The rig recognizes your home network and Wi-Fi credentials are transferred automatically.

Fast Network Pairing

SimHub & Dashboard

  • Full SimHub Integration: Unlimited telemetry data, bass shaker, and wind simulator support for all games.
  • Advanced Mobile App: Lap times, tire temps, and instant torque distribution directly on your phone.
  • On-the-fly Tuning: Change motion intensity and response speed in seconds while driving.

Hardware Monitor

  • Independent Protection: ESP32 processor runs independently from the main software, monitoring the system 24/7.
  • Smart E-Stop: Safely stops the system from your mobile device in emergencies without damaging the motors.
  • Black Box: Records the last 3 seconds of data in high resolution in case of an issue.
Info & Documentation

The Future of
Motion Simulation

Detailed technical review and engineering architecture of the HB Rig system, combining professional precision with a "Zero Hassle" philosophy.

Download Catalog (.PDF)
